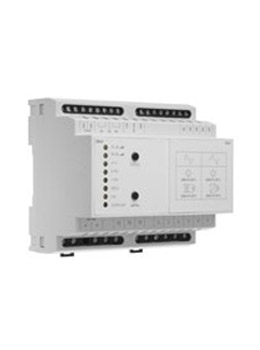

• Designed for RLC dimming lights, also available for appliance switching.
• Manages 230V AC output, controlled by 1 semi-conductor.
Maximum output power is 2000Va.
• Can be controlled manually, via switched input, 0(1)-10V or potentiometer
• Electronic overcurrent protection, overvoltage and short-circuit protection.
• Thermal protection inside device.
• 6-MODULE version, DIN rail mounting.
• Additional 1000Va modules can be added (DIM6-3M-P).
A total of 8 can be
added to the DIM-6, totalling 10,000Va.
| Technical Details |
| Supply Voltage: |
230VAC / 50Hz |
| Input: |
10VA |
| Voltage Range: |
-15%; +10% |
| Maz. output power: |
2000VA |
| Dissapated power: |
2.5% from Load |
| Module extendable: |
to 10000VA |
| Isul. volt. between outputs and inner circuits: |
3.75KV, SELV |
| Control - Button Type |
| Control voltage: |
AC 12-240V |
| Control terminals: |
S-S, galvanically separated |
| Length of control impulse |
min. 25ms, max unlimited |
| Recovery time: |
max. 150ms |
| Control 0(1)-10V |
|
| Control terminals: |
0(1)-10V, GND |
| Contol voltage: |
0-10V or 1-10V |
| Min. current control input: |
1mA |
| CIB contol |
|
| Control terminals: |
CIB+, CIB- |
| Bus voltage: |
27V DC |
| Current of control input: |
5mA |
| Indication of data transmission: |
yellow LED |
| Output |
|
| Contactless: |
4 x MOSFET |
| Current rating: |
10A |
| Resistsive load: |
2000VA* |
| Inductive load: |
2000VA* |
| Capacitive load: |
2000VA* |
| Indication of output state |
yellow LED, according to load |
| Other data |
|
| Operating temperature: |
-20oC to +35oC |
| Storaging temperature: |
-30oC to +70oC |
| Operating position |
vertical |
| Mounting: |
Din rain EN 60715 |
| Protection degree: |
IP 40 from front panel |
| Heat and fire resistance cat.: |
FR-0 |
| Anti-stroke category: |
class II |
| Rated inpulse voltage: |
2.5KV |
| Overvoltage category: |
III. |
| Pollution level |
2 |
| Dimensions |
90 x 105 x 65mm |
| Weight |
410g (14.5oz.) |
| Applying standards: |
EN 60669-2-1,EN 61010. EN55014 |
