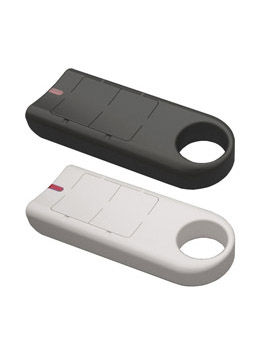

RF KEY
Transmitter
• The 4-channel Key-fob is a portable transmitter for controlling
the various receivers available
• Thanks to its small size it has a variety of uses; controlling entrance
gates and garage doors as well as switching and dimming of lights
• Key-fob transmitters can simultaneously operate unlimited numbers
of assigned actuators, which are within the range of RF signal
• The RF signal is transmitted by wireless communication
between system units
• The range of the RF signal is dependent on building construction,
applied materials and concept of unit location
• The battery life is approxiamately 3 to 5 year (battery:CR 2032)
| Technical Details | |
|---|---|
| Supply voltage: | 3V battery CR 2032 |
| Transmission indication: | Red LED |
| Number of inputs: | 4 |
| Transmission frequency: | 868 MHz |
| Type of signal transmision: | Unidirectionally addressed message |
| Range in open space: | up to 200 m/ 656.2 ’ |
| Other data | |
| Operating temperature: | -10 °C to +50 °C ( 14 °F to 122°F) |
| Operating position: | any |
| Protection degree: | IP20 |
| Pollution degree: | 2 |
| Dimensions: | 64 x 25 x 10 mm (2.5”x 1.0” x 0.4”) |
| Weight: | 16 g (0.6 oz.) |
| Applicable standards: | EN 60669, EN 300 220, EN 301 489 Directive RTTE, No.426/2000Sb (Directive 1999/ES) |
