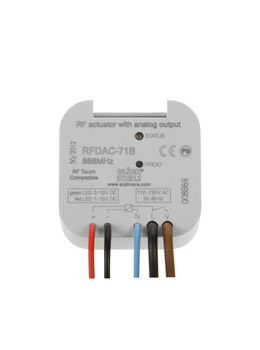

Actuator/Receiver with Analogue Output


• Actuator is designated for continous regulation of device, which is
  operated by voltage 0(1)-10 V

• It is suitable for: - dimming of fluorescent lights -in combination with
  dimmable ballast - controlling of power dimmers - controlling of
  thermo-regulators such as thermo-valves, ventilation etc.

• Easy operation: -short press of transmitter button will close/open the circuit
  of appliance and set the analog output voltage onto its last set level -long   press enables an analog output voltage regulation in range 0(1)-10 V

• One actuator can be operated by up to 32-channels(1 channel represents 1   button on the wireless push-button, key-chain or RF Touch unit)

• Enables output switching in mode: 0-10 V max.10 mA or 1-10 V max.10 mA

• RFDAC-71B: multifunction - 7 programming functions: 6 various
  lighting scenes, ON/OFF function

• Programming and manual operation is performed by using the Prog button

• CS2 receiver offers memory function which enables device to remember the   status in the event of power failure (single flash - disabled or double   flash - enabled when exiting programming)

Technical Details
Supply voltage: 110V - 230V AC
Apparent input: 3 VA / cos φ = 0.1
Dissipated power: 1.2 W
Tolarance of supply voltage: -15 %; +10 %
Potential-free analog output/max.current 0(1)-10V / 10mA
Packet from transmitter: 868 MHz
Emergency control: PROG (ON/OFF)
Range: up to 200 m/ 656.2 ’
Number of contacts: 1x SPDT AgSnO2, switches a phase conductor
Rated current: 16A / AC1
Switched output: 4000VA / AC1
Switched voltage: 250V AC1
Mechanical life: 3x107
Electrical life (AC1): 0.7x105
Indication: red  LED
Choice of output: 0(1)-10V / button PROG
Other data
Operating temperature: -15 °C to +55 °C (5 °F to 131 °F)
Operating position: any*
Mounting: loose on input wires
Protection degree: IP 30
Overvoltage category: III.
Pollution level: 2
Output wires: solid wires CY, 5x0.75 mm2  (AWG 18)
Output wire length: 90 mm (3.5˝)
Dimensions: 49 x 49 x 21 mm (1.9˝x 1.9˝x 0.8˝)
Weight: 40 g (1.4 oz.)
Applying standards:  EN 60669, EN 300 220, EN 301 489 directive RTTE, No.426/2000Sb(directive1999/ES)
