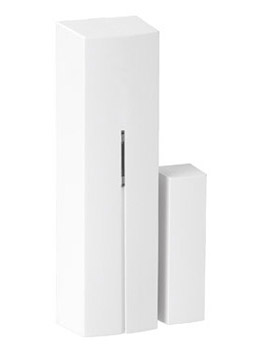

JA-83M
Wireless magnetic window/door detector
• Designed to detect window or door opening.
• Magnetic sensor is mounted on to plastic or wooden
door or window frames.
• Pair to switching actuators/receivers to switch appliance,
e.g. turn off air
conditioning unit or heating to conserve energy.
• Easy pairing to actuators/receivers.
• Can control multiple actuators/receivers within range together.
| Technical Details |
| Battery Type: |
CR123A Lithium |
| Voltage: |
3.0V DC |
| Battery Lifetime: |
3 Years (approximately) |
| Communication Band: |
868MHz |
| Communication Range: |
300m (open area) |
| Dimensions: |
Transmitter: 75mm x 31mm x 23mm |
|
Magnet A: 56mm x 16mm x 15mm |
|
Magnet B: 10mm diameter x 4mm |
| Operational environmental: |
Class II. internal |
| Operational temperature range: |
-10 to +40oC |
| Classification: |
Grade 2 |
| Complies with: |
ETSI EN 300220, EN50130-4, EN55022, and EN 60950-1 |
| Can be operated according to: |
ERC REC 70-03 |
