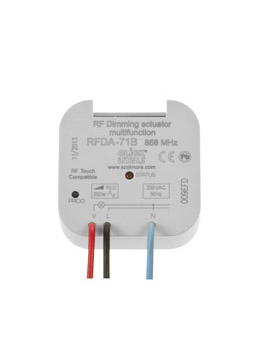

RFDA-71B
Dimming Actuator/Receiver
• Create lighting scenes and moods
• Allows the dimming of dimmable CFLi's, halogen lamps, low-voltage halogen lights with a dimmable transformer as well as standard tungsten filament
• 7 programmable functions: 6 various dimming functions plus ON/OFF
• Easy operation: short press will turn the light ON or OFF, a long press
dims the lights UP or DOWN to the required level
• The dimming actuator can be controlled by up to 32 transmitters
• Electronic over-voltage protection - switches off the output when the
dimmer is
overloaded or open circuit
• The programming is performed by using the button 'PROG' which
also acts as a manual override
• Can be mounted inside a 35mm deep back box or behind the light fitting
| Technical Details |
| Supply voltage: |
230V AC |
| Apparent consumption: |
8.3 VA / cos j = 0.1 |
| Loss consumption: |
0.83W |
| Tolerance of supply voltage: |
9.85 |
| Connection: |
3-wire, with “NEUTRAL“ |
| Output |
| Resistive load: |
250VA |
| Capacitive lod: |
250VA |
| Inductive load: |
250VA |
| Output |
|
| Packet from transmitter: |
868 MHz |
| Emergency control: |
PROG (ON/OFF) |
| Range in open space: |
up to 60M |
| Other data |
| Operational temperature: |
-15 °C to +55 °C (5 °F to 131 °F) |
| Operational position: |
any |
| Mounting: |
loose on input wires or 35mm deep back box |
| Protection degree: |
IP 30 |
| Overvoltage category: |
III. |
| Pollution level: |
2 |
| Output wires: |
3 x 0.75 mm2 |
| Output wire length: |
90 mm (3.5˝) |
| Dimensions: |
49 x 49 x 21 mm (1.9˝x 1.9˝x 0.8˝) |
| Weight: |
40 g (1.4 oz.) |
| Applying standards: |
EN 60669, EN 300 220, EN 301 489, Directive RTTE, NV No.426/2000Sb(Directive 1999/ES) |
