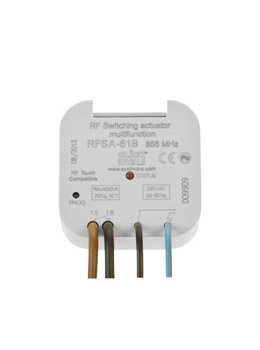

RFSA-61B
Switching Actuator / Receiver
• The switching actuator is suitable for the control of devices such as,
lights, heating, garage doors, socket-outlets etc.
• 6 functions of operation are available: push-button, close, open,
impulse relay, delayed off, delayed on
• The programming is performed by using the button 'PROG' which
also acts as a manual override
• The switching actuator can be controlled by up to 32 transmitters,
like the RF Touch and push-button units
• The status of the device is signalled by an LED on the front panel
• Can be mounted inside a 35mm deep back box or behind light fittings
| Technical Details |
| Supply voltage: |
230V AC |
| Input: |
7 VA / cos = 0.1 |
| Loss consumption: |
0.7 W |
| Tolarance of supply voltage: |
+10 %; -15 % |
| Output |
|
| Number of contacts: |
1x NO/ SPDT (AgSnO2) |
| Rated current: |
16 A / AC1 |
| Switched output: |
4000 VA / AC1, 384 W / DC |
| Peak current: |
30 A / <3 s |
| Switched voltage: |
250 V AC1 / 24 V DC |
| Min. switched output DC: |
500 mW |
| Mechanical life: |
3x107 |
| Electrical life (AC1): |
0.7x105 |
| Control |
|
| Packet from transmitter: |
868 MHz |
| Emergency control: |
PROG (ON/OFF) |
| Range in open space: |
up to 200M |
| Other data |
|
| Operational temperature: |
-15 °C to +55 °C (5 °F to 131 °F) |
| Operational position: |
any |
| Mounting: |
loose on input wires or 35mm deep back box |
| Protection degree: |
IP 30 |
| Overvoltage category: |
III. |
| Pollution level: |
2 |
| Output wires: |
2x 0.75 mm, 2x 2.5 mm2 |
| Output wire length: |
90 mm (3.5˝) |
| Dimensions: |
49 x 49 x 21 mm |
| Weight: |
46g |
| Applying standards: |
EN 60669, EN 300 220, EN 301 489 Directive RTTE, NV No.426/2000Sb(Directive 1999/ES) |
