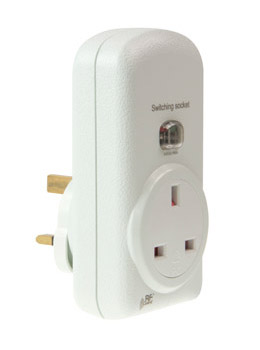

RFSC-61 - 13A
Switching Socket Outlet
• Quick solution for wireless control of appliances into a socket.
• Multifunction design - button switch on/off, impulse relays, delayed off,
delayed on, programming and manual control on/off is performed by
pressing
the front panel button.
• Switching output up to 4000VA.
• Controlled by up to 32 Channels.
• Option of setting function delayed return, delayed start with time
interval from 2
seconds to 30 minutes.
• CS2 receiver offers memory function which enables device to remember the
status in the event of power failure (single flash - disabled or double flash -
enabled when exiting programming)
| Technical Details |
| Supply voltage: |
230V AC / 50-60Hz |
| Apparent power: |
6VA |
| Dissipated power: |
0.7W |
| Supply voltage tolerance: |
+10%; -15% |
| Output |
|
| Number of contacts: |
1 x switching |
| Rated current: |
16A / AC1 |
| Switching power: |
4000VA / AC1, 384W |
| Peak current: |
30A / <3s |
| Switching voltage: |
250V AC1 / 24V DC |
| Min. switching power DC: |
500mW |
| Mechanical service life: |
3 x 107 |
| Electrical service life (AC1): |
0.7 x 105 |
| Controlling |
|
| RF command from transmitter: |
868MHz |
| Manual control: |
button PROG (ON/OFF) |
| Range in open space: |
up to 200m |
| Further data |
|
| Operating temperature: |
-15 up to + 50oC |
| Working postion: |
any* |
| Mounting: |
In a network socket 230V AC |
| Protection: |
IP30 |
| Overvoltage category: |
III. |
| Contamination degree: |
2 |
| Dimensions |
60 x 120 x 80mm |
| Weight: |
195g |
| Related Standards |
EN60669, EN300220, EN301489 |
