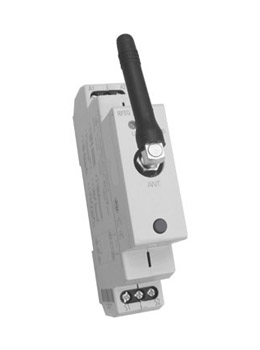

230V~ Mains Transmitter


• The mains transmitter sends a wireless signal to switching actuators /
  receivers when the switched input is closed or open (turn ON or OFF)

• The transmitter pairs with function 1 of the actuator receiver. Whilst the
  switch input is closed the signal will continue to be sent every 10
  minutes keeping the actuator/receiver turned ON

• Once the switched input is opened the transmitter will send the signal to
  turn OFF the actuator/receiver

• The programming is performed by using the button 'PROG' which
  also acts as a manual override

• The status of the device is signalled by two LED diodes on the front panel

• Perfect solution for where a permanent connection is required,
  e.g. thermostat to boilers, PIR to external lighting etc.

Technical Details
Supply voltage: 110-230V AC
Apparent input: 2VA
Dissipated power: 0.2W
Tolerance of supply voltage: +10%;  -25 %
Control voltage: 12-230V AC / 12-230V DC
Control input power: 0.025VA AC / 0.1W DC
Control terminals: S - S
Length of control impulse: min. 25ms ( max. unlimited)
Switched voltage: 250V AC1 / 24V DC
Transmission indicator: red LED
Transmitter frequency:  868 MHz
Signal transmission method: unidirectionally addressed message
Range in free space: up to 160M
Minimum control distance: 20 mm
Other data
Operating temperature: 0 °C to +50 °C
Operating position: any
Mounting: DIN rail EN 60715
Protection degree: IP20 from front panel
Overvoltage category: III.2
Pollution level:    max. 2.5 mm² / 2 x 1.5 mm²
Terminal wire capacity: 90 x 17.5 x 64 mm
Dimensions:   62g
Weight: EN 60669, EN 300 220, EN 301 489
Applying standards: Directive RTTE, NV No.426/2000Sb(Directive 1999/EC)
