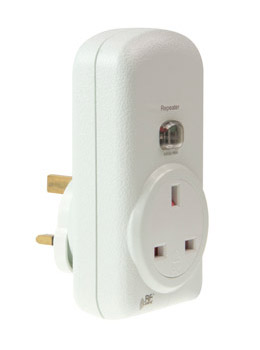

RFRP-20/B
Plug-in Repeater with 13A Socket Outlet
• Extends the transmission range by up to 200 metres in free air.
• Extends the transmission of up to 20 transmitting devices including
RF Pilot, RF
Touch, Keyfobs and wall control plates.
• 13A socket outlet is unswitched.
• Easy pairing of the transmitters to extend the range.
• Overcomes weak signal areas caused by distance or building materials.
• Multiple repeaters can be used within an installation.
| Technical Details |
| Supply voltage: |
230V AC / 50-60Hz |
| Apparent power: |
6VA |
| Dissipated power: |
0.7W |
| Transmitter Frequency: |
868MHz |
| Range in open space: |
up to 200M |
| Minimum control distance: |
20mm |
| Programming: |
button green LED / red LED |
| Other data: |
|
| Operating temperature: |
-20 to +55 °C |
| Storage temperature: |
-30 to +70°C |
| Mounting: |
plug into a socket |
| Protection:: |
IP20 Device |
| Dimensions: |
60 x 120 x 80 mm |
| Weight:Dimensions |
225 g |
| Related standards: |
EN 607 30-1 ED.2 |
