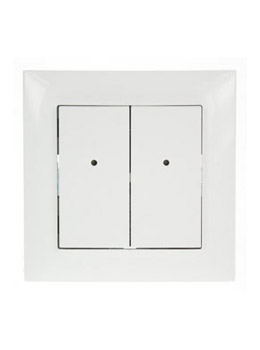

• RFWB-40B: 4-channel (fold) wireless push-button
• The wireless push-button transmitters control the various receivers available
• Slimline design with flat mounting surface allowing for easy and quick installation on to most surfaces (glass, wood, wall..)
• The RF signal is transmitted by wireless communication between
system units
• Transmitters can simultaneously operate unlimited number of
assigned
actuators, which are within range of the RF signal
• The range of the RF signal is dependent on building construction,
applied materials and concept of unit location
• Powered by battery (CR 2032), life is approxiamately 3 to 5 years
(depending on frequency of use)
| Technical Details | |
|---|---|
| Voltage: | 3V battery CR 2032 |
| Transmission indication: | red LED |
| Number of inputs: | 4 |
| Transmission frequency: | 868 MHz |
| Type of signal transmission: | Unidirectionally addressed message |
| Range in open space: | Up to 200 m/ 656.2 ’ |
| Other data | |
| Operating temperature: | -10 °C to +50 °C ( 14 °F to 122°F) |
| Operating position: | any |
| Mounting: | stick/screw |
| Protection degree: | IP20 |
| Pollution degree: | 2 |
| Dimensions: | 94 x 94 x 16 mm (3.7”x 3.7” x 0.6”) |
| Weight (without frame): | 39 g (1.4 oz.) |
| Applicable standards: | EN 60669, EN 300 220, EN 301 489Directive RTTE, NV No.426/2000Sb (Directive 1999/ES) |
