RFSA-66M
Switching Actuator / Receiver (6 Channel)
• The switching actuator is suitable for the control of devices such as,
lights, heating, garage doors, socket-outlets etc.

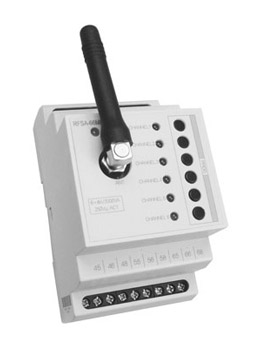

• RFSA-66M: 6-channel switching actuator in 3 MCB module width
suitable for din rail mounting
• 6 functions of operation are available on each channel: push-button,
close, open, impulse relay, delayed return, delayed start
• The programming is performed by using the button 'PROG' on each
channel which also acts as a manual override
• The switching actuator, each channel can be controlled by up to
32 transmitters, like the RF Touch and push-button units
• The status of the device is signalled by an LED diode on the front panel
• CS2 receiver offers memory function which enables device to remember the
status in the event of power failure (single flash - disabled or double flash -
enabled when exiting programming)
• The RFSA-66M receiver is supplied with the front fitting antenna
| Technical Details |
| Supply voltage: |
110-230V AC |
| Apparent consumption: |
min. 2 VA / max. 5 VA |
| Loss consumption: |
min. 0.5 W / max. 2.5 W |
| Tolerance of supply voltage: |
+10%; -25 % |
| Output |
|
| Number of contacts: |
3 x changeover (AgSnO2) 3 x switching (AgSnO2) |
| Current rating: |
8A / AC1 |
| Switched output: |
2000VA / AC1 |
| Peak current: |
10 A / <3 s |
| Switched voltage: |
250V AC1 |
| Min. switched output |
500 mW |
| Mechanical life: |
1 x 107 |
| Electrical life (AC1): |
1 x 105 |
| Control |
|
| RF by transmitter command: |
868 MHz |
| Emergency control: |
button PROG (ON/OFF) |
| Range in open space up to: |
up to 200M |
| Other data |
|
| Operating temperature: |
0 °C to +50 °C (32 °F to 122 °F) |
| Operating position: |
any |
| Mounting: |
DIN rail EN 60715 |
| Protection degree: |
IP20 from front panel |
| Overvoltage category: |
III |
| Pollution level: |
2 |
| Terminal wire capacity: |
max. 2.5 mm²/1.5 mm² with a ferrule |
| Dimensions: |
90 x 52 x 65mm |
| Weight: |
310g |
| Applying standards: |
EN 60669, EN 300 220, EN 301 489 Directive RTTE, NV No.426/2000Sb(Directive 1999/EC) |
