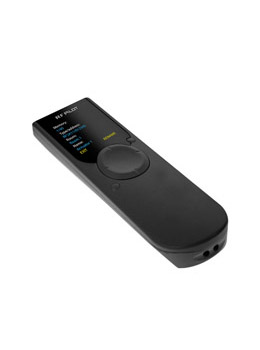

RF Pilot
Remote RF Controller with Display
• Provides control and feedback about status of appliances and devices.
• Can be programmed for up to 40 RF Control actuators.
• Measures and displays temperature in the surrounding area.
• "Scene" mode enables user to control up to 10 receivers with a single press.
• Can include most frequently used device in to the "Favourite" menu and
control them immediately after the activation of the RF Pilot display.
• Has a range of up to 200m
| Technical Details |
| Type: |
Colour OLED |
| Resolution: |
128 / 128 pixels |
| Side ratio: |
01:01 |
| Visible surface: |
26 x 26mm |
| Backlighting: |
self-illuminating text |
| Diagonal: |
1.5" |
| Control: |
direction button, control buttons |
| Power supply |
2 x 1.5V AAA batteries / R03 |
| Battery life: |
approx. 3 years |
| Range in free space: |
upto 200m |
| Frequency: |
868MHZ |
| Other data |
|
| Operating temperature: |
00C to +550C |
| Storage temperature: |
-200C to +700C |
| Protection: |
IP20 |
| Dimensions: |
130 x 41 x 18mm |
| Weight: |
61g |
| Related Standards: |
EN60730-1 |
