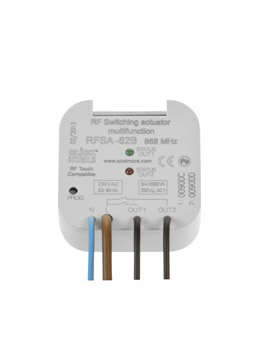

2 Channel Switching Actuator / Receiver


• The 2 channel switching actuator is suitable for the control of devices such
  as, lights, heating, garage doors, socket-outlets etc. on each channel

• 6 functions of operation are available on each channel: push-button,
  close, open, impulse relay, delayed off, delayed on

• The programming is performed by using the button 'PROG' which
  also acts as a manual override

• Each channel can be controlled by up to 16 transmitters, like the
  RF Touch and push-button units

• The status of the device is signalled by two LED's on the front panel.
  Green LED - Output 1
  Red LED - Output 2

• CS2 receiver offers memory function which enables device to remember the   status in the event of power failure (single flash - disabled or double flash -   enabled when exiting programming)

Technical Details
Supply voltage: 230V AC
Input: 7 VA / cos      = 0.1
Loss consumption: 0.7 W
Tolarance of supply voltage: +10 %; -15 %
Number of contacts: 2 x Switching (AgSnO2)
Rated current: 2 x 8 A / AC1
Switched output: 2000 VA / AC1
Peak current: 10 A / <3 s
Switched voltage: 250 V AC1
Min. switched output DC: 500 mW
Mechanical life: 1x107
Electrical life (AC1): 1x105
Packet from transmitter: 868 MHz
Emergency control: PROG (ON/OFF)
Range in open space: up to 100M
Other data
Operational temperature: -15 °C to +55 °C (5 °F to 131 °F)
Operational position: any
Mounting: loose on input wires or 35mm deep back box
Protection degree: IP 30
Overvoltage category: III.
Pollution level: 2
Output wires:  3 x 0.75 mm2,  1 x 2.5 mm2
Output wire length: 90 mm (3.5˝)
Dimensions: 49 x 49 x 21 mm (1.9˝x 1.9˝x 0.8˝)
Weight: 46 g (1.6 oz.)
Applying standards: EN 60669, EN 300 220, EN 301 489 Directive RTTE, NV No.426/2000Sb(Directive 1999/ES)
