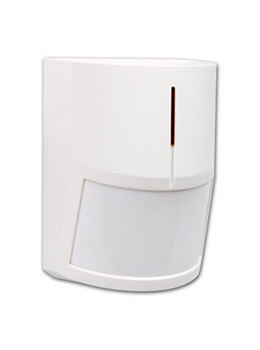

• Designed to detect body movement.
• Default lens fitted covers an angle of 120o at a distance of 12 metres.
• air to switching actuators/receivers to switch appliance,
e.g. turn on lighting
when activated.
• Easy pairing to actuators/receivers.
• Time delay off can be easily programmed to the switching actuators,
with the activation range being from 2 seconds to 30 minutes.
• Can control multiple actuators/receivers within range together.
• Inbuilt battery saving mode.
| Technical Details |
| Battery Type: |
CR123A Lithium |
| Voltage: |
3.0V DC |
| Battery Lifetime: |
3 Years (approximately) |
| Communication Band: |
868MHz |
| Communication Range |
300m (open area) |
| Recommended installation height: |
2.0 to 2.5 m above floor level |
| Detection angle/detection range: |
120° / 12 m (basic lens) |
| Transmitter Dimensions: |
85mm x 60mm x 55mm |
| Operational environmental: |
Class II. internal |
| Operational temperature range: |
-10 to +40oC |
| Classification: |
Grade 2 |
| Complies with: |
ETSI EN 300220, EN50130-4, EN55022, and EN 60950-1 |
| Can be operated according to: |
ERC REC 70-03 |
