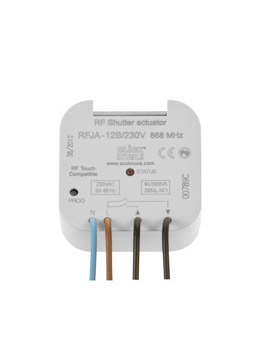

RFJA-12B/230V
Shutter Actuator / Receiver
• The shutter actuators have the function of controlling motorised
shutters, blinds, garage doors etc.
• Controls 230V AC motors, which can be operated in both
directions
and have an in-built protective limit switch
• The time duration for completely opening or shutting the blind is retained
• The switching actuator can be controlled by up to 32 transmitters,
like the RF Touch and push-button units
• The status of the device is signalled by an LED diode on the front panel
• The programming is performed by using the button 'PROG' which
also acts as a manual override
• Can be mounted inside a 35mm deep back box or in to a
non-metallic box behind the motor unit
| Technical Details |
| Supply voltage: |
230V AC |
| Apparent consumption: |
7VA / cos j = 0.1 |
| Loss consumption: |
0.7 W |
| Consuption without load: |
x |
| Consuption with load: |
x |
| Tolerance of supply voltage: |
9.85 |
| Output |
| Number of contacts: |
2 x NO/ 2PDT (AgSnO2) |
| Rated current: |
8 A / AC1 |
| Switched output: |
x |
| Switching power: |
2000VA / AC1 |
| Peak current: |
10 A / <3 s |
| Switched output voltage**: |
230V AC |
| Mechanical life: |
1x107 |
| Electrical life (AC1): |
1x105 |
| Control |
| Packet from transmitter: |
868 MHz |
| Emergency control: |
PROG (STOP UP, STOP DOWN) |
| Range in open space: |
up to 100 m/ 328’ |
| Other data |
| Operational temperature: |
0 °C to +50 °C (32 °F to 122 °F) |
| Operational position: |
any |
| Mounting: |
loose on input wires |
| Protection degree: |
IP 30 |
| Overvoltage category: |
III. |
| Pollution level: |
2 |
| Output wires: |
solid wires CY, 4 x 0.75 mm2 |
| Output wire length: |
90 mm (3.5˝) |
| Dimensions: |
49 x 49 x 21 mm |
| Weight: |
46 g (1.6 oz.) |
| Applying standards: |
EN 60669, EN 300 220, EN 301 489 Directive RTTE, NV No.426/2000Sb (Directive 1999/ES) |
