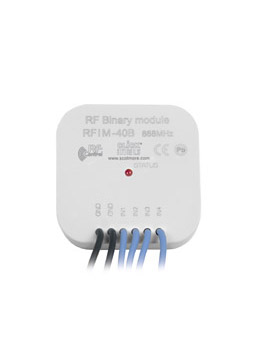

• The Universal Transmitting Module is easily wired in to two 3 position
retractive switches with centre off, allowing for the switch (push-button)
plate to match
existing wiring accessory designs.
• 4 inputs, one available for each control button and two input common wires
• The module mounts behind the switch plate. The depth of back box required
will depend on the type of mounting plate used.
• The Universal Transmitting Module is programmed via the receiver
• The RFIM-40B transmitter can simultaneously operate unlimited numbers
of
assigned actuators, which are within the range of RF signal
• The range of the RF signal is dependent on building construction,
applied
materials and location of the unit
• Battery powered, life is approxiamately 3 to 5 years (2 x CR 2032)
• Module can be positioned up to 5 metres away from the retractive /
momentary switch
| Technical Details | |
|---|---|
| Supply voltage: | 2 x 3V battery CR 2032 |
| Battery life, approx.: | 3 to 5 years, according to frequency of use |
| Indication/function: | Red LED |
| Number of inputs: | 4 |
| Transmision frequency: | 868 MHz |
| Means of signal transmision: | Unidirectionally addressed message |
| Range in open space: | Up to 200 m/ 656.2 ’ |
| Other data | |
| Operational temperature: | -10 °C to +50 °C ( 14 °F to 122°F) |
| Operational position: | any |
| Output leads (wire CY, profile): | 6 x 0.75 mm2 |
| Length of leads: | 90 mm (3.5” ) |
| Cond. resistance between term.: | |
| - for closed contact: | < 300 Ω |
| - for opened contact brake: | > 10 kΩ |
| Mounting: | Loose on connecting wires |
| Protection degree: | IP30 |
| Pollution degree: | 2 |
| Dimensions: | 49 x 49 x 13 mm (1.9” x 1.9” x 0.5”) |
| Weight: | 50 g(1.8 oz.) |
| Voltage of opened contact: | 3V |
| Contact cable length: | max. 5 m (16.4’) |
| Applicable standards: | EN 60669, EN 300 220, EN 301 489 Directive RTTE, NV No.426/2000Sb (Directive 1999/ES) |
