RF Touch
CENTRAL UNIT
The RF Touch unit enables intelligent operation
of RF receivers and combined units
PROVISION FOR:
• Central control of all units from one place
• Complete overview (visualisation) of live status
of units (appliances/mechanisms)
FUNCTIONS:
• Sending commands for switching, dimming,
heating and shutter actuators
• Receiving commands from transmitters,
controllers and temperature sensors
• Timed programs for heating and regulation
• Coloured 3.5 inch touch screen

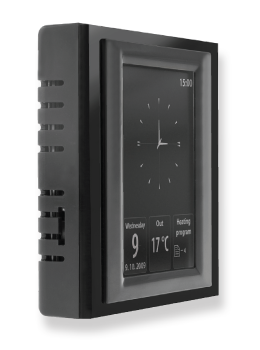

RF Touch-W: Surface mounted device
with supply voltage from
the rear: 85-230V
or from the side (via Jack connector): 12V DC
| Technical Details | |
|---|---|
| Type: | Coloured TFT LCD |
| Resolution: | 320 x 240 points / 262144 colours |
| Visible surface: | 52.5 x 70 mm (2”x 2.7” ) |
| Back-light: | Active (white LED) |
| Touch screen area: | Resistive 4-conductor |
| Diagonal: | 3.5” |
| Controlled by: | Touch-screen |
| Memory slot: | N/A |
| Voltage range/rated current: | from the rear 85 -230V AC |
| Power: | from the side 12V DC* |
| Control | max. 5W |
| Range: | 100 m/ 787’ |
| Frequency: | 868 MHz |
| Termination: | Screwless push-in terminals (in to back) or adaptor jack 2.1 mm (left side) |
| Terminal wire capacity: | max. 2.5 mm² / 1.5 mm² with a ferrule |
| Operating temperature: | 0 °C to +55 °C (32 °F to 131 °F) |
| Storage temperature: | -20 °C to +70 °C (-4 °F to 158 °F) |
| Protection degree: | IP20 |
| Overvoltage category: | III |
| Pollution degree: | 2 |
| Operating position: | vertical or horizontal |
| Dimensions: | 94 x 94 x 24 mm (3.7”x 3.7” x 0.9”) |
| Mounting: | Any surface mount - adhesive pads or screws (screws not supplied) |
| Applying standards: | EN 60669, EN 300 220, EN 301 489 EN 60730-1 Directive RTTE, NV No.426/2000Sb (Directive 1999/ES) |
